HTTP Protocol

Language of the Internet

• We will look at from a developers perspective. A solid understanding will allow you to understand and debug web applications.

Resources

Are HTML pages, images, videos, javascript, css, etc.

Resource Addresses, Uniform Resource Location (URL)

• <scheme>://<host>:<port>/<path>?<query>#<fragment>

  • HTML pages:

    • http://google.com
    • https://news.ycombinator.com/
    • http://github/tdyer
    • https://help.github.com/articles/installing-git-html-help

  • Images:

    • http://imgs.xkcd.com/comics/online_communities.png

  • Video:

    • http://www.youtube.com/watch?v=BYB3Fx0a8-4

• URL Scheme. Part before the ://

  • http, https, ftp, ssh, ...
  • http, https handled by a web server.
  • ftp handled by a FTP server/daemon.
  • ssh handled by a SSH server/daemon.

• Host. Name of the computer hosting the resource

  • google.com, help.github.com, etc.

  • localhost is a special hostname that points to the computer your working on.

  • Translated to IP Address by DNS (Domain Name System)

    • > nslookup news.ycombinator.com
    • > dig news.ycombinator.com

  • localhost is translated to 127.0.0.1 which is the IP address of your local computer.

• Port. A URL may have a port number. The port number will be after the host name but before the path.

  • Default ports are ports that will be used if a port is not included in a URL.
    • Port 3111. http://railsinboston:3111/end_of_the_internet.
    • Port 80 is the default port for http.
    • Port 443 is the default port for https.
    • Port 3000 is the default port for rails applications running locally. http://localhost:3000

  There are many ports on each host system. Some of them are permanently assigned to protocols.

  • List of assigned port numbers.
    • http://en.wikipedia.org/wiki/List_of_TCP_and_UDP_port_numbers
    • http://www.ietf.org/rfc/rfc1700.txt

• Path. Points to a resource on a host system.

  • For the URL:
    • https://help.github.com/articles/installing-git-html-help
  • The Path is:
    • /articles/installing-git-html-help

  This typically indentifies an html page, executing code/script, image, etc behind a web server

• Query String. Used to send parameters to the web server/application.

  • Everything after the '?' is the query string
  • Send the name-value pair 'q', 'brocolli' to the resource that lives at www.bing.com and has the path 'search'
    • http://www.bing.com/search?q=broccoli
  • The query string may have multiple parameters in the query string. Each parameter, name-value pair, is seperated by the ampersand character,'&'.

• URL Fragment. After the query string, seperated by the pound/hash '#' symbol. Only used by the browser to identify a section of a resource.

  • Fragment is 'feedback'
    • http://odetocode.com/Blogs/scott/archive/2011/11/29/programming-windows-8-the-sublime-to-the-strange.aspx#feedback

• URL Encoding. Some characters are unsafe for URLs, space, pound '#', slash '/', ampersand '&', etc.

  • Need to use url encoded versions of these characters.
  • space is %20, ampersand is %26
  • URL Encodings

Embedded Resources

Some resources, like an HTML page, may have embedded links (URLs). The browser will load these embedded resources after as it loads the containing page.
For example, a HTML page may have links to images, videos, javascript, etc that will be *also* be loaded by the browser.

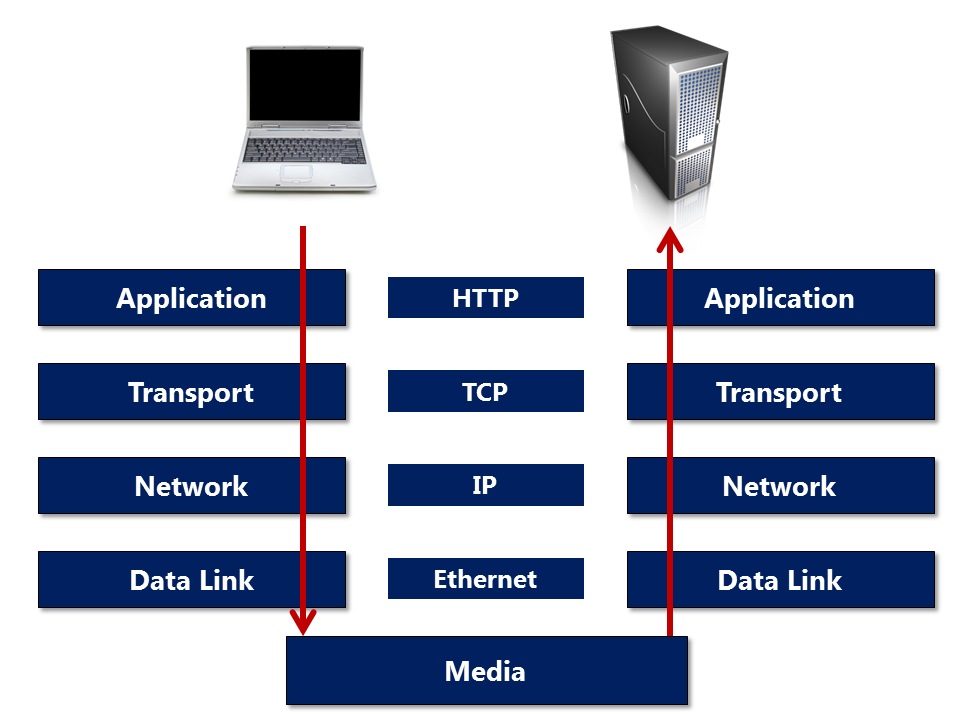

Network Stack

Each layer represents a Protocol.

• These Protocols are defined by Request For Comment (RFC) documents. No need to dig into these now.
• We are going to focus on the HTTP protocol.

HTTP Request/Response

HTTP Clients

* Browser. Chrome, Firefox, Safari, IE, …
* Command line utilities. curl, wget
* HTTP Ruby libraries. HTTParty, Faraday, Typhoues, ...

HTTP Servers. Web Servers.

* Apache, Nginx, Thin, Tomcat, Pow, …

HTTP Request

From a HTTP client,typically a browser, to a web server running on a host system.
* HTTP Request Methods
	GET and POST most used.
	* GET. Retrieve a resource.
	* POST. Create a resource.
	* PUT. Update a resource.
	* DELETE, Delete a resource.
	* HEAD, Retreive the headers for a resource.
* GET HTTP Request Format
	[method] [URL] [version]
	[headers]
* Example GET Request:
	GET http://vermonster.com HTTP/1.1
	Accept:text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8
	Accept-Encoding:gzip,deflate,sdch
	Accept-Language:en-US,en;q=0.8
	Connection:keep-alive
	Host:vermonster.com
	User-Agent:Mozilla/5.0 (Macintosh; Intel Mac OS X 10_8_5)
	AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1659.2 Safari/537.36####

	* Media Types
		What kind of resource can we retrieve? Defined by Multipurpose Internet Mail Extensions (MIME) standards. Used in the HTTP Request Accept Header and the HTTP Response Content-Type Header.
		* HTML = text/html
	  	* GIF Image = image/gif
	  	* PNG Image = image/gif
	  	* MP4 Video = video/mp4
	  	* PDF = application/pdf
	  	* JSON = application/json

See Media Types*

HTTP Response

Reply to a HTTP client from a web server.
* HTTP Response Overview
[version] [status] [reason]
[headers]

[body]	# typically HTML, json, ...
* HTTP version should be 1.1
* Status Codes, [Status Codes](http://en.wikipedia.org/wiki/List_of_HTTP_status_codes)
	* 200  OK
	* 301 Moved Permanently
	* 302 Moved Temporarily
	* 400 Bad Request
	* 403 Forbidden
	* 404 Not Found
	* 500 Internal Server Error

Viewing HTTP Request/Response

* curl. Command line apps that sends requests.
	* curl -i http://www.vermonster.com/
* Chrome Inspector. Developer tool built into Chrome browser.
	* View -> Developer -> Developer Tools
	* Select Network
	* Cmd-R to send request
* Run a *very* simple Rack application.
	* ruby simple_rack_app.rb
	* In Chrome:
		* http://localhost:1234/
	* Look at in Chrome Inspector, Cmd-Option i.
	* Go to the Network tab and refresh, Cmd-R
	* Notice the HTTP parameter seen by the web server.
