What

Adds position and orientation terms to ContactNet's L2 objective and runs a
4-arm overnight ablation at N=8. Also folds in FIX_CHECKLIST B1/B2 (the DR+terrain
data confounds from the last run) so the ablation is measured on clean data.

New objectives (--objective): l2_vel_pos, l2_vel_ori, l2_vel_pos_ori.
l2_velocity is unchanged and reproduced bit-for-bit (use_pos=use_ori=False).

Position L_pos: segment-relative world-frame displacement MSE.
Orientation L_ori: ‖Log(ΔR_estᵀ ΔR_true)^∨‖², the SO(3) log-map error of the
incremental rotation.
Both are segment-relative on purpose — base position and yaw are unobservable, so
their absolute error drifts unbounded in chained BPTT and would swamp L_vel.
Weights auto-size once on a warm batch to 0.5·L_vel each, then freeze (logged to
summary.json); override with --w-pos / --w-ori.

Closed-loop demo (arm D, `l2_vel_pos_ori` in the loop)

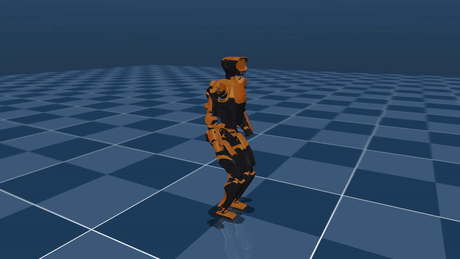

Ghost overlay (estimate vs actual) driving forward → backward → sidestep L,R → yaw L,R:

Full-resolution 1280×720 mp4: contactnet_demo_ghost.mp4.

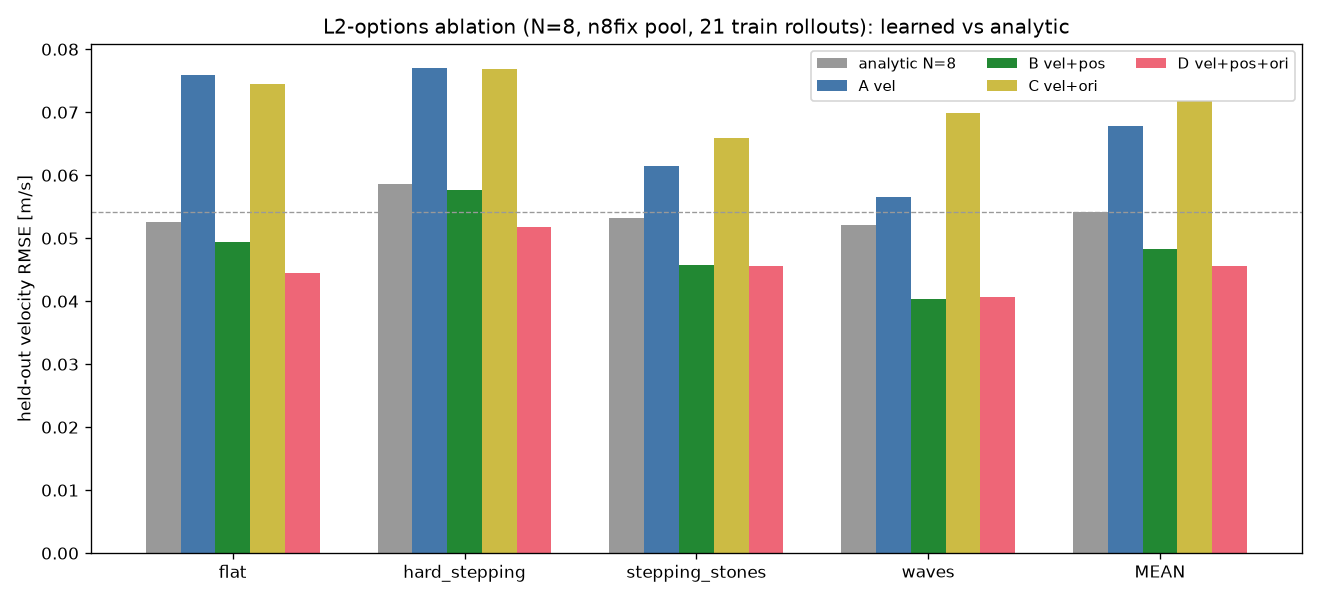

Result (held-out velocity RMSE, N=8, fresh 21-train-rollout `n8fix` pool)

arm	objective	learned RMSE	vs analytic (0.0541)
A	`l2_velocity` (= R3b)	0.0678	1.25×
B	`l2_vel_pos`	0.0483	0.89× — beats analytic
C	`l2_vel_ori`	0.0718	1.33×
D	`l2_vel_pos_ori`	0.0456	0.84× (best)

The position term is the win — it makes the learned N=8 socket beat the analytic
baseline for the first time. Orientation alone hurts (competes with velocity) but is
net-positive once position anchors the trajectory. Full writeup + per-terrain table in
results.md.

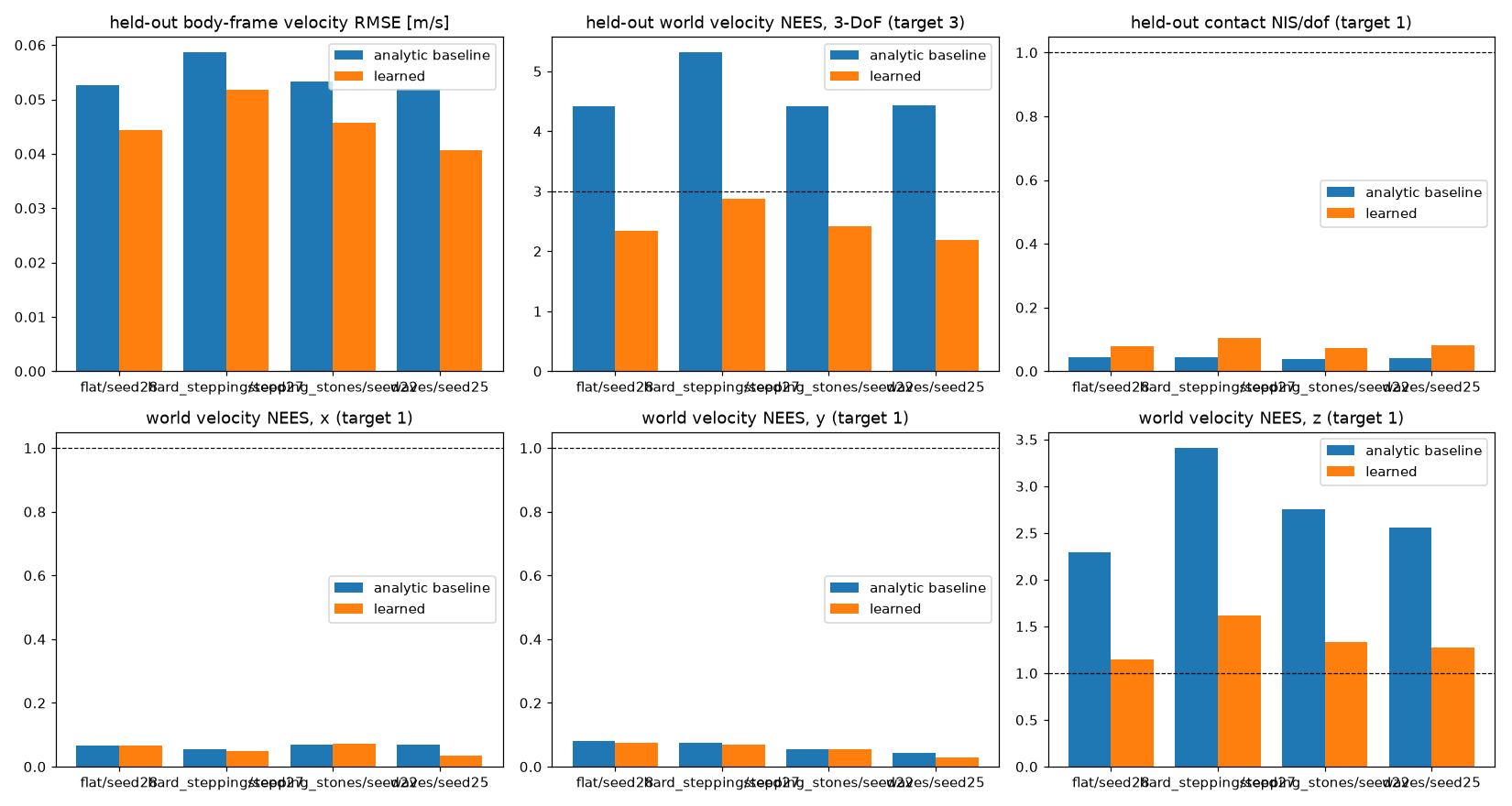

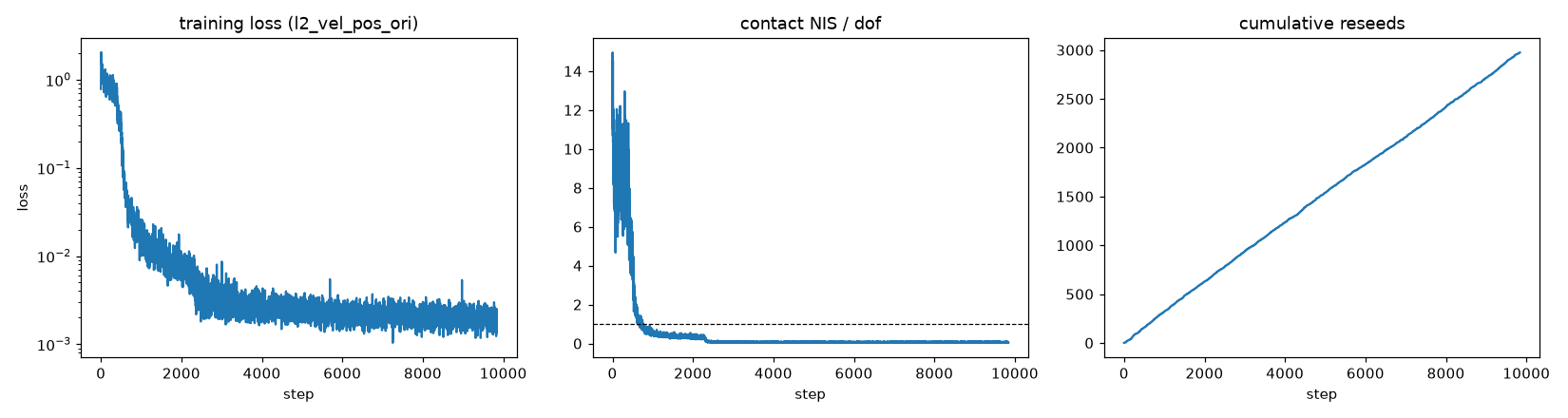

Arm D training + held-out validation panels

Caveat: later arms got ~29% more steps as caches warmed (ranking robust — C had more
steps than A and still lost — but D-over-B is partly steps). NIS/dof fell: the pose
terms improve the mean, not the covariance calibration (a Block-C matter).

Data fixes folded in (FIX_CHECKLIST Block B)

B1 — terrain.waves() now consumes seed (it was a fixed field for every seed, so
training and held-out waves rollouts shared a heightfield — verified fixed: previously
identical waves/seed5–seed9 now differ by 0.107).
B2 — 21 training rollouts (vs the last run's 5); arm A alone (0.0678 vs R3b's 0.088)
is that data fix showing up before any new loss term.
collect_rollout / collect_dr_pool gain --name-tag so a re-collected pool doesn't
overwrite an existing same-N one.

Tests

tests/contactnet/test_pose_losses.py (8) — zero-at-truth, non-negativity, exact
reduction to l2_velocity, batched-shape contract, and closed-form oracles (orientation
= θ², position = ‖δ‖²·mean(k²) + offset-invariance), finite gradients.
tests/sim/test_terrain.py (5) — B1 seed-decorrelation + relief-band. All green, plus the
existing contactnet + N=8 suites (19).

Note on the diff size

Branched from 09d8327 (the last pure-infra commit, per request), which is 11 commits
ahead of contactnet/take-two, so this PR also carries the N=8 / DR / β-NLL
infrastructure onto take-two along with the L2 options — as intended.

🤖 Generated with Claude Code
