MixCap Web Platform

The official deployment platform for the MixCap Multimodal Captioning Project. This full-stack application automates the entire pipeline: video processing, feature extraction (BLIP-2 + Wav2Vec2), and caption generation.

---

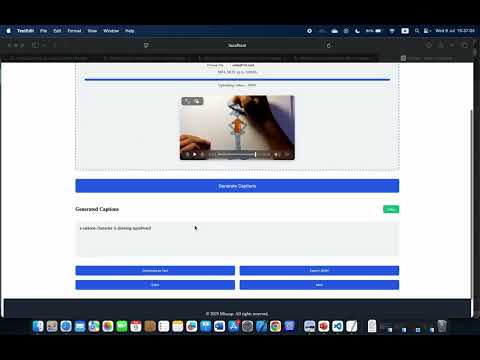

Live Demo & Walkthrough

See the application in action, including real-time caption generation and the user interface workflow.

Click the image above to watch the full demo on YouTube.

---

Overview

This application bridges the gap between complex deep learning research and end-users. It allows users to upload raw video files and receive accurate, natural language descriptions generated by the MixCap Model.

This repository contains the full-stack web platform for MixCap.

• Frontend: React-based UI for video upload and caption display
• Backend: Flask API that handles preprocessing, feature extraction, and inference
• AI Pipeline: BLIP‑2 (vision) + Wav2Vec2 (audio) fused by the custom MixCap model

This repository does not include large model weights.

The Brain Behind the App

This repository contains the Application Logic (React/Flask). To explore the core research, model architecture, and training notebooks, visit the Research Repository:

MixCap Research & Model Repository

---

System Flow

1. User uploads a video from the React frontend
2. Flask backend extracts frames and audio using FFmpeg
3. Visual and audio features are extracted
4. MixCap model generates a caption
5. Caption is returned to the frontend

---

Project Structure (Exact)

The directory structure below matches this repository exactly. Folder names are case‑sensitive.

MIXCAP-WEB-PLATFORM/
├── Be/                              # Backend (Flask)
│   ├── app.py                       # Flask API entry point
│   ├── features/                    # Feature-related logic
│   ├── scripts/                     # FFmpeg + extraction scripts
│   ├── utils/                       # Model loading & inference
│   ├── tokenizer/                   # SentencePiece tokenizer
│   ├── uploads/                     # Temporarily stored uploads
│   └── models/
│       ├── blip2-opt-2/             # BLIP-2 model files
│       └── MixCap/                  # MixCap_model_only.pth
│
├── Fe/                              # Frontend (React)
│   ├── public/
│   └── src/
│       ├── assets/
│       ├── components/
│       ├── pages/
│       ├── App.js
│       ├── App.css
│       ├── index.js
│       └── index.css
│
├── README.md
└── LICENSE

---

Model Files (Important)

Large AI model files are NOT included in this repository.

Why:

• Exceed GitHub file size limits
• Keep the repository clean and lightweight

This is intentional.

---

Model Setup

BLIP‑2 (Visual Encoder)

Download the official BLIP‑2 model from Hugging Face:

https://huggingface.co/Salesforce/blip2-opt-2.7b

Setup:

1. Go to Be/models/
2. Create folder: blip2-opt-2
3. Place all BLIP‑2 files inside it

---

MixCap Model Checkpoint

• MixCap_model_only.pth is not uploaded to this repository
• Provided separately via the research project or direct distribution

Setup:

1. Go to Be/models/
2. Create folder: MixCap
3. Place MixCap_model_only.pth inside

Without this file, inference will not run.

---

System Requirements

• Python 3.9+

• Node.js 18+

• FFmpeg installed and available in PATH

  • macOS: brew install ffmpeg
  • Linux: sudo apt install ffmpeg
  • Windows: manual install

• CUDA‑enabled GPU (recommended)

---

Installation

Backend (Flask)

cd Be
python -m venv venv
# Windows
venv\Scripts\activate
# macOS / Linux
source venv/bin/activate

Create requirements.txt:

flask==3.0.0
flask-cors==4.0.0
torch>=2.0.0
torchaudio>=2.0.0
transformers>=4.30.0
numpy
Pillow
sentencepiece
werkzeug

Install & run:

pip install -r requirements.txt
python app.py

Backend runs at: http://127.0.0.1:5000

---

Frontend (React)

cd Fe
npm install
npm start

Frontend runs at: http://localhost:3000

---

API Endpoints

Method	Endpoint	Description
POST	/upload	Uploads video, runs FFmpeg & feature extraction
POST	/generate_caption	Runs MixCap inference on extracted features
POST	/save_caption	Saves the result to CSV for user history
GET	/health	Checks if the backend and model are loaded correctly

---

Author

Ravindu Layanga
