Student Grade Sorting and Analysis System 📊

A modern desktop application built with JavaFX 21 for efficiently managing, sorting, analyzing, and visualizing student grade data. Features include data persistence, Excel import/export, multiple sorting algorithms, and statistical/distribution views.

Screenshots 📸

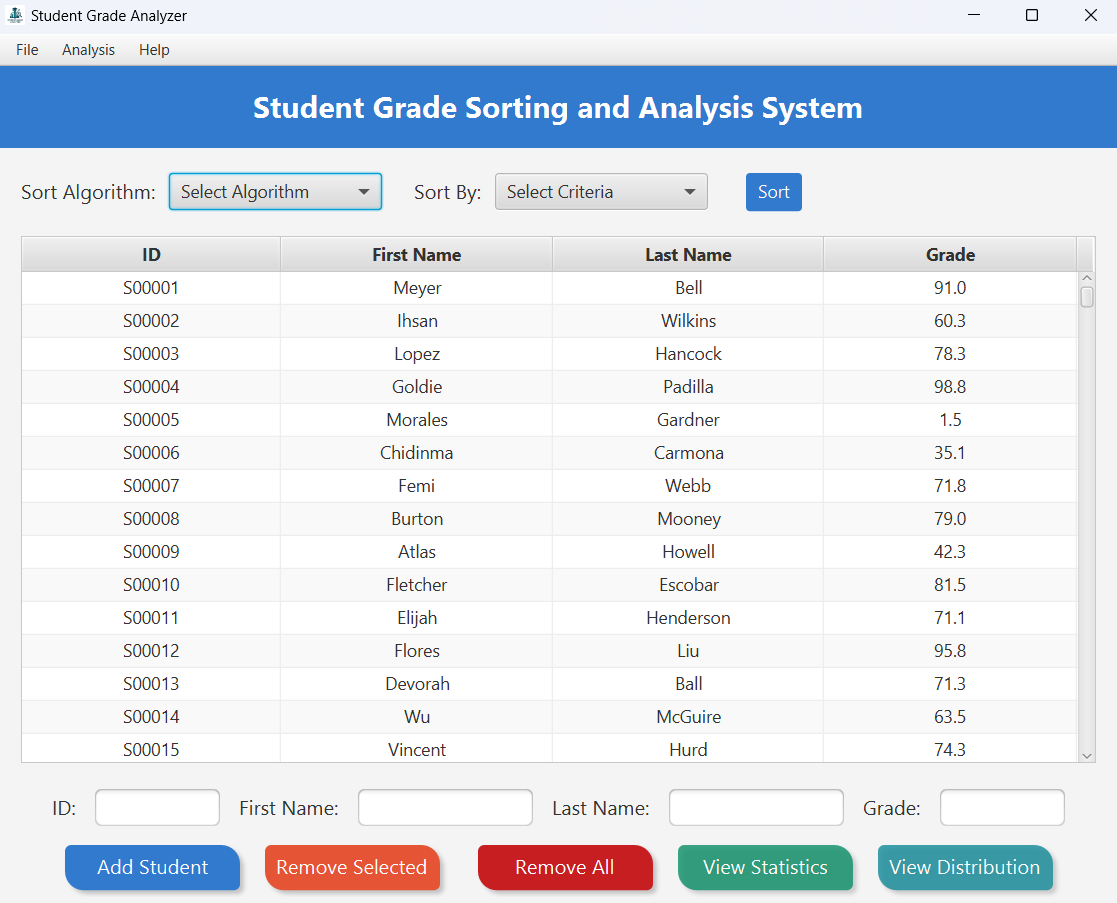

Main View - Manage & Sort Data

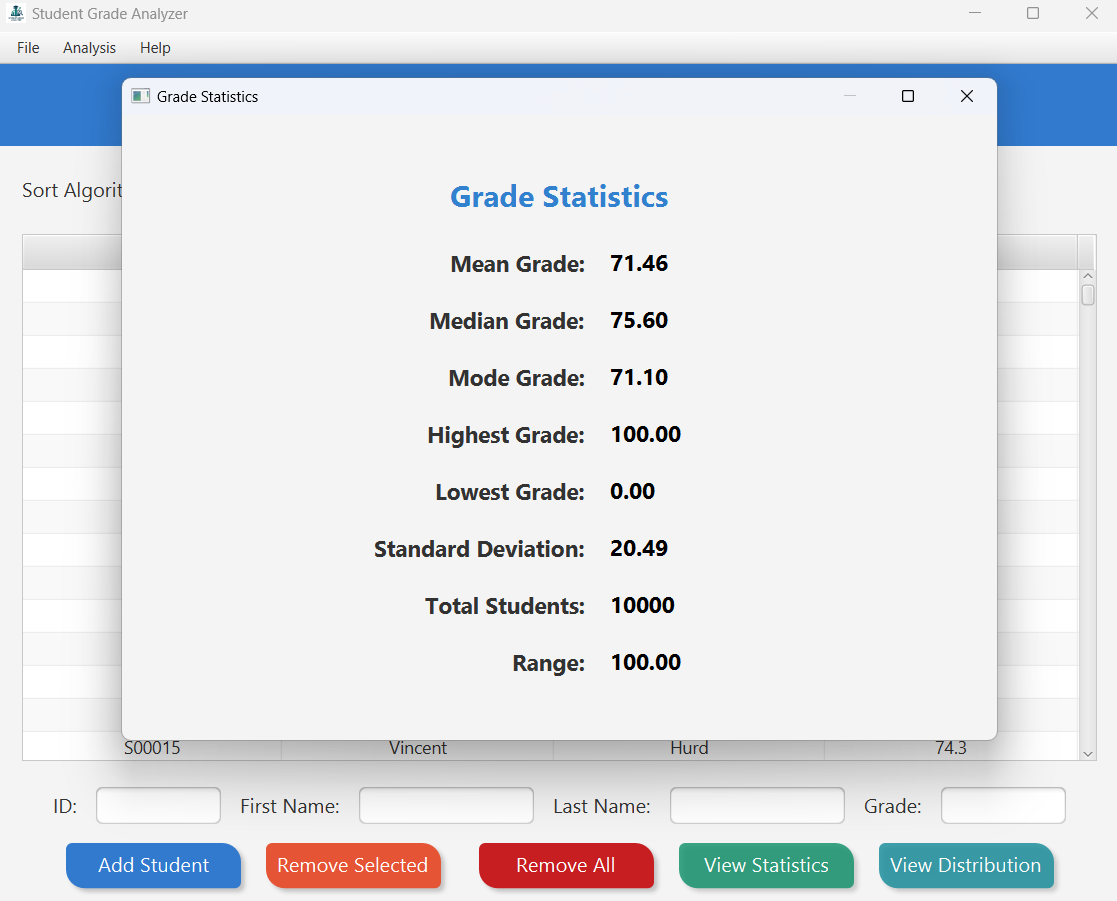

Statistics View - Key Metrics

Distribution View - Charts & Percentages

Overview 🌟

This application provides a user-friendly interface to:

• Enter and store student information (ID, First Name, Last Name, Grade).
• View student data in a clear, sortable table.
• Sort student records based on various criteria (ID, Name, Grade) using different efficient sorting algorithms (QuickSort, MergeSort, RadixSort).
• Import student data from Excel (.xlsx) files.
• Export the current student data to Excel (.xlsx) files.
• Calculate and display key statistical metrics for the grades.
• Visualize the grade distribution using bar charts.
• Persist data between sessions using a local JSON file.

Key Features ✨

• ✍️ Data Entry & Management:

  • Easily add new students with unique IDs, names, and grades (validated 0-100).
  • Quickly remove selected students via the table.
  • Built-in input validation ensures data integrity.

• 📊 Data Display:

  • Presents student data in a clean, readable TableView.
  • Columns include ID, First Name, Last Name, and Grade.

• 🚀 Efficient Sorting:

  • Sort data instantly by ID, Name, or Grade.
  • Compare algorithm performance by choosing between:
    • QuickSort
    • MergeSort
    • RadixSort (Optimized for numeric ID & Grade)
  • See the sort execution time displayed after each operation.

• 🔄 Import/Export (Excel):

  • Import student lists directly from .xlsx files (ID, FirstName, LastName, Grade expected).
  • Choose to replace existing data or append new records (duplicate IDs are skipped on append).
  • Export the current student table to a new .xlsx file with a single click.

• 📈 Analysis & Visualization:

  • Statistics View: Get immediate insights with calculated metrics:
    • Mean, Median, Mode
    • Highest & Lowest Grades
    • Standard Deviation & Range
    • Total Student Count
  • Distribution View: Visualize class performance:
    • Bar chart showing counts for grade categories (A, B, C, D, F).
    • Clearly displayed percentages for each grade category.
    • Detailed score histogram chart (0-9, 10-19, ..., 90-100).

• 💾 Data Persistence:

  • Your data is automatically saved to students.json when you close the app.
  • Data is automatically loaded when you start the app again – no manual saving needed!

Technology Stack 💻

• Language: Java (Requires JDK 21 or later to build)
• Framework: JavaFX 21 (via OpenJFX) for the graphical user interface.
• Build Tool: Apache Maven
• IDE Used: (Recommended)
• Libraries:
  • Jackson Databind: For saving/loading student data to/from JSON.
  • Apache POI (poi-ooxml): For reading from and writing to Excel .xlsx files.
  • Apache Commons (Collections4, Compress, IO): Dependencies for Apache POI.
  • XMLBeans: Dependency for Apache POI.
• Packaging: . (for .exe wrapper)

Getting Started 🚀

Follow these instructions to get the application running or to build it from the source code.

Prerequisites ‼️

• To Run the Application (Student Grade Analyzer.exe):
  • Windows Operating System.
  • Java Runtime Environment (JRE) 8 installed. Download it from here .
  • Java Development Kit (JDK) 21 (64-bit) installed. Download it from here .
• To Build from Source:
  • JDK 21 (64-bit) or later. Make sure JDK bin is on your system PATH.
  • Apache Maven: Required to compile and package the project. Make sure mvn is executable from your command line (Maven bin directory added to PATH).
  • Launch4j: (Optional, if you want to rebuild the .exe wrapper) Download from .

Running the Application (.exe) 🚀

1. Install Prerequisites: Before running the application, ensure you have both JRE 8 AND JDK 21 (x64) installed on your Windows machine, and that JDK 21 is correctly configured in your system PATH.
2. Download: Get the Student Grade Analyzer.exe file from the
3. Run: Double-click the Student Grade Analyzer.exe file. It should use the installed JRE/JDK to launch the JavaFX application.

IDE Setup (IntelliJ IDEA) 🛠️

Use these steps to run the project directly within IntelliJ IDEA.

1. Clone the Repository:

   git clone https://github.com/OmarAfifi-CSE/StudentGradeAnalyzer.git
   cd StudentGradeAnalyzer

2. Open Project in IntelliJ:
   • File -> Open... -> Select the cloned project's pom.xml file -> Open as Project.
   • Trust the project if prompted.
3. Configure Project SDK:
   • File -> Project Structure... (Ctrl+Alt+Shift+S).
   • Project Settings -> Project: Set SDK to your installed JDK 21. Set Language level to SDK default.
   • Apply -> OK.
4. Sync Maven Dependencies:
   • Open the Maven tool window (View -> Tool Windows -> Maven).
   • Click the "Reload All Maven Projects" button (circling arrows). Wait for completion.
5. Run/Debug:
   • Select the configured StudentGradeApp run configuration and click Run (▶️) or Debug (🐞).

Building from Source ⌨️

This method uses IntelliJ's artifact system, ideal for running within the IDE.

1. Prerequisites: JDK 21 (configured in IntelliJ), JavaFX SDK 21 (know the lib path), Maven dependencies synced (Maven -> Reload Project).
2. Configure Artifact (if needed):
   • File -> Project Structure -> Artifacts -> + -> JAR -> From modules with dependencies....
   • Module: StudentGradeAnalyzer (or similar).
   • Main Class: main.StudentGradeAppPublish.
   • Select: Copy to the output directory and link via manifest.
   • OK -> Apply -> OK.
3. Build Artifact: Build -> Build Artifacts... -> Select your artifact -> Build. (Output typically in out/artifacts/...).

Note: This builds an output folder (out/artifacts/...) with your JAR and dependencies. It doesn't create a single executable or bundle Java. Running it outside IntelliJ requires manually setting up the java command with the correct VM options and classpath. For distribution, consider using jpackage or Launch4j.

Usage 📖

1. Launch: Run the .exe or execute the JAR (requires manual JavaFX module configuration if run directly).
2. View Data: Existing student data (loaded from students.json) is displayed in the table.
3. Sort: Select a sorting algorithm (QuickSort, MergeSort, RadixSort) and a criteria (ID, Name, Grade) from the dropdowns and click "Sort". Note that RadixSort may only be suitable for ID/Grade depending on implementation.
4. Add Student: Enter ID, First Name, Last Name, and Grade in the fields at the bottom and click "Add Student".
5. Remove Student: Select a row in the table and click "Remove Selected".
6. Analyze: Click "View Statistics" or "View Distribution" to open separate windows with calculated metrics and charts.
7. Import/Export: Use the "File" menu to import from or export to .xlsx files.
8. Exit: Use the "File" -> "Exit" menu item or the window's close button. Data is saved automatically on exit.

Configuration 💾

• Persistent student data is stored in a JSON file located at:
  • C:\Users\[YourUsername]\.StudentGradeAnalyzer\students.json (on Windows)
  • ~/.StudentGradeAnalyzer/students.json (on macOS/Linux)
• Deleting this file will cause the application to load sample data on the next startup.
