AAR submit APIs (/data/receive.php) returns 404

[VyMajoris]

OCAP Version: 3.2.0-stable
Server OS: Windows

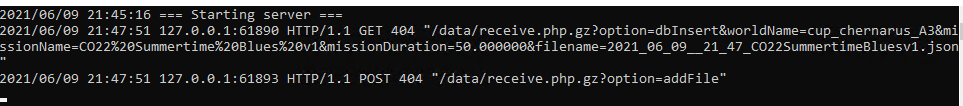

Description: When the addon calls the extention to upload the recording, the server returns 404.

The server is runnig. I can access my AAR webpage.

Steps to reproduce: Call ocap_fnc_exportData

ocap-web options.json:

{
	"title": "OCAP",
	"description": "Operation Capture And Playback",
	"author": "Frontend: MisterGoodson (aka Goodson [3CB]), Backend: Dell",
	"language": "en",
	"version": "3.2.0",
	"listen": "127.0.0.1:5000",
	"secret": "secret",
	"logger": true,
	"classes-game": [
		{"key": "", "name": "All"},
		{"key": "tvt", "name": "TvT"}
	]
}

OcapReplaySaver2.cfg.json:

{
    "addFileUrl": "http://127.0.0.1:5000/data/receive.php?option=addFile",
    "dbInsertUrl": "http://127.0.0.1:5000/data/receive.php?option=dbInsert",
    "httpRequestTimeout": 120,
    "newMode": 0,
    "newServerGameType": "",
    "newUrl": "https://127.0.0.1:5000/api/v1/operations/add",
    "newUrlRequestSecret": "secret",
    "traceLog": 1
}

userconfig/ocap.hpp:

ocap_nameServer = 'Test';
ocap_minPlayerCount = 1;
ocap_frameCaptureDelay = 1;
ocap_excludeFromRecord = ["ACE_friesAnchorBar"];
ocap_saveMissionEnded = true;
ocap_minMissionTime = 1;

RPT File
ocap-ext.20210609_222355.log
ocap-main.20210609_222355.log

Side note:
Please provide a quick documentaion on what these values mean and where they are used:
classes-game, newMode, newServerGameType, ocap_nameServer

[Zealot111]

@VyMajoris why newmode is set to 0 ? Is it intensional?
"newMode" : 1 means that dll send mission using "newUrl": "https://127.0.0.1:5000/api/v1/operations/add"
(intended for use with new go web service, which is included in installation)
(and not using addFileUrl and dbInsertUrl which vere used for php scripts in previous versions )
You should set "newMode": 1, unless you want something very specific

[Zealot111]

Ocap allow several type of missions to be filtered by user, for example you may have 'tvt1' arma3 instance, 'tvt2' instance and so on. User will be able to filter only tvt2 missions in ocap for example.
So you may configure ocap to distinguish missions from these servers.
Try default value and change only if you want something specific
default value - "newServerGameType": "tvt", ocap_nameServer = 'TvT';

[Zealot111]

	"classes-game": [
		{"key": "", "name": "All"},
		{"key": "tvt", "name": "TvT"}
	]

describes these instance names, only tvt in default configuration

[VyMajoris]

Thanks. To be honest I'm not sure why newmode was set to 0. I probably copied from an older config somewhere in our server.
I changed it to 1 and it worked. I just had to also change the newUrl "https" to "http".

[Zealot111]

@VyMajoris please consider starring repository if you find our project useful ⭐
